Post Subject: CypriUm - The Ultimate Water Loop Case
Posted on: Jun 30, 2009
Page Navigation:<<<1234>>>



In Greek the metal was known by the name chalkos (χαλκός). Copper was a very important resource for the Romans, Greeks and other ancient peoples. In Roman times, it became known as aes Cyprium (aes being the generic Latin term for copper alloys such as bronze and other metals, and Cyprium because so much of it was mined in Cyprus). From this, the phrase was simplified to cuprum, hence the English copper. Copper was associated with the goddess Aphrodite/Venus in mythology and alchemy, owing to its lustrous beauty, its ancient use in producing mirrors, and its association with Cyprus, which was sacred to the goddess. In astrology, alchemy the seven heavenly bodies known to the ancients were associated with seven metals also known in antiquity, and Venus was assigned to copper.

From: http://en.wikipedia.org/wiki/Copper

This project was an entry for the OCN Case Mod Comp '09 but I get disqualified today (June 30, 2009) for posting some ramdom pictures on my site and some videos on youtube but anyway I learn a lot! So I don't have to keep this project in the shadows anymore...!!!

Enjoy it!

The Plan (December 01, 2008)

Build the ultimate and most innovative Water Cooling system ever seen.
Over time I have seen all the components of a computer change periodically, since the introduction of the water cooling system has been poorly updated. So I decided to create my own Water Cooling System "CypriUm - The Ultimate Water Loop Case".

I'll use the same measures as a Full ATX Case and I'll follow the Water Cooling traditional parameters, using 1/2" copper pipes, radiator, reservoir, water blocks (CPU and GPU) and hoses, the difference will be the integration of these components with the design of the case.

Things that I want to accomplish:
- Custom Made Reservoir (Not like the Original Plan but better)
- Custom Water Loop (Done)
- Less Tubing More AirFlow (Done)
- Less Cable (Done)
- Unique Shape (Done)

Sub-Mods
#1 PSU - Mod (Done)
#2 Graphic Card Mod (Done)
#3 SATA Sleeving (Done)
#4 120mm Case Fan Mod (Done)
#5 Custom Power Button (Done)

Cu = Copper = CypriUm

The Materials

- 1/2" Copper Pipe (20+ feet)
- 1/2" Copper Ts (34)
- 1/2" 45 Copper Elbow (20)
- 1/2" 90 Copper Elbow (25)
- 1/2" Acrylyc Tube (3')
- 1/2" Fittings (6)
- Double 120mm Radiator (1)
- Pump (1)
- CPU and GPU Water Block
- 6' of Hose
- Acrylic Sheet 30"x28 (2)
- Pipe Cutter
- Bernzomatic Propane
- Bernzomatic Welding Rods
- Clear Epoxy
- Fiberglass Resin and Hardener
- 140mm Case Fan (1)
- 120mm Case Fan (3)
- Bright Orange LEDs (16)
- Hex Mesh (2)
- Pennies (2)






















- Top - Profile - Private Message - Website - Reply


cantstraferight
[Insert funny here]

Joined: Jan 16, 2007
Posts: 1426
Post Subject: subject
Posted on: Aug 31, 2009


I'm currently busy setting up my own site.
I still check here now and again but I've not been posting much.



- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Sep 20, 2009


CypriUm Mega-Update

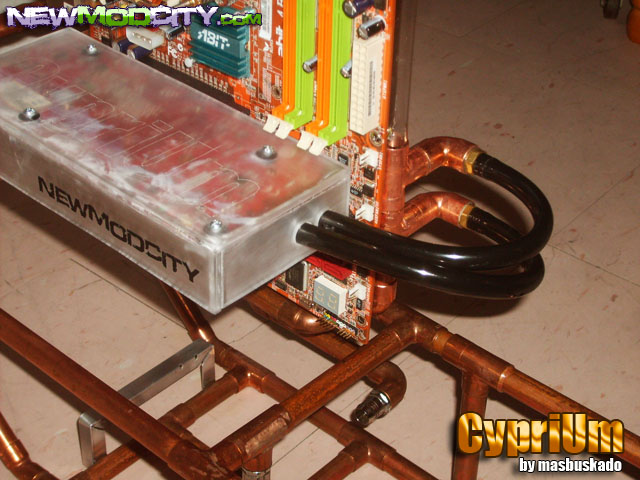

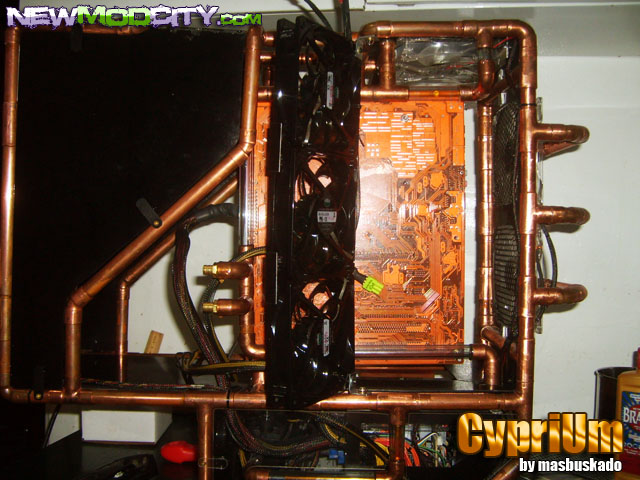

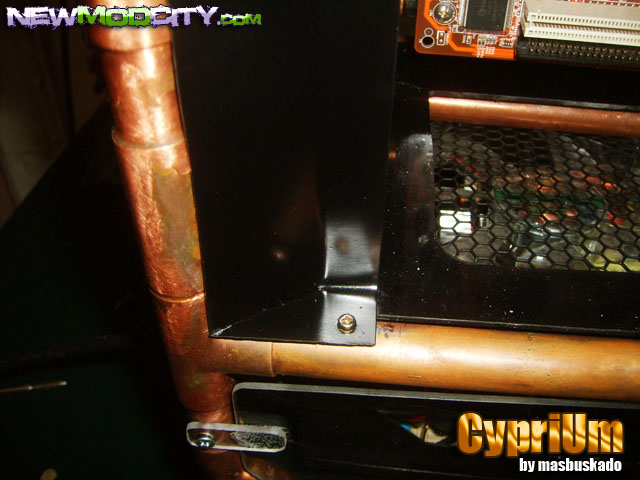

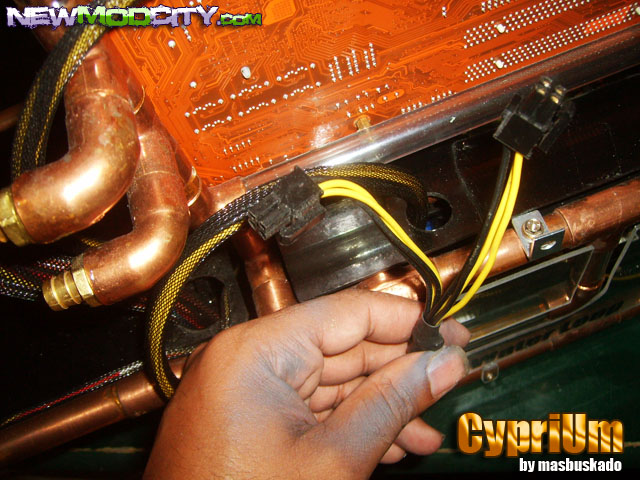

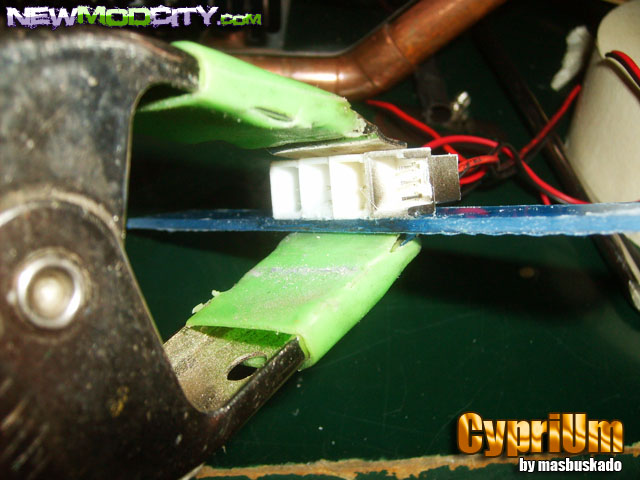

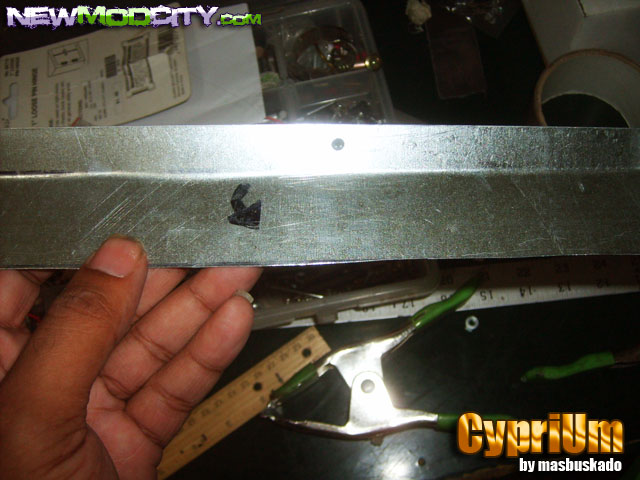

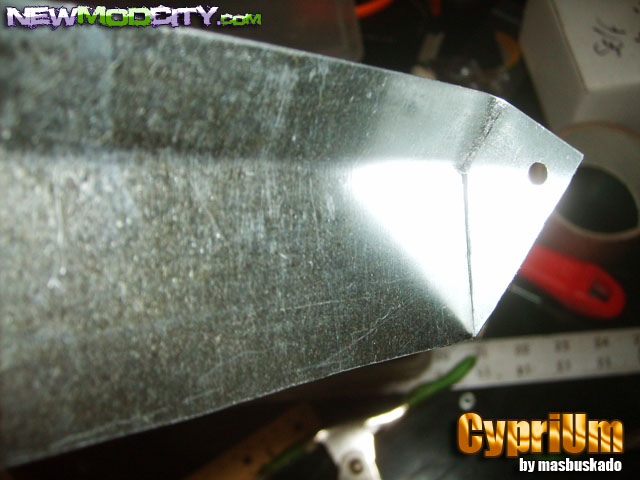

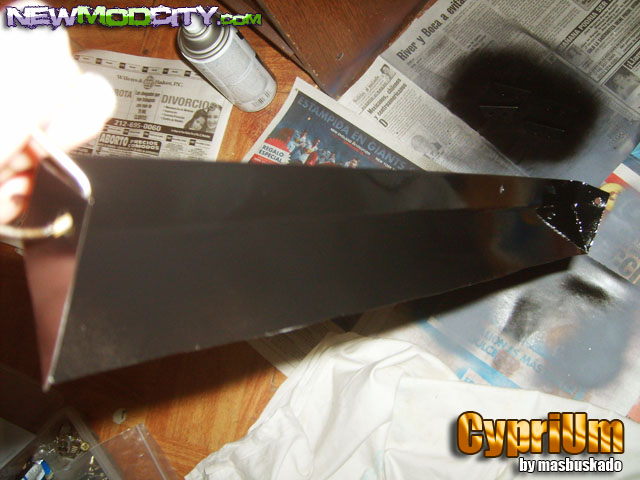

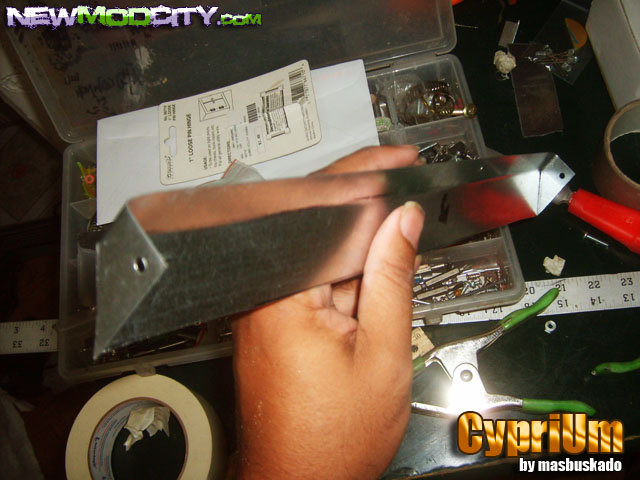

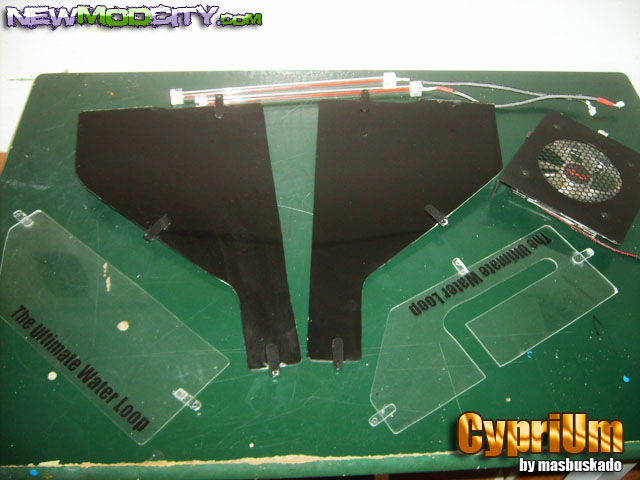

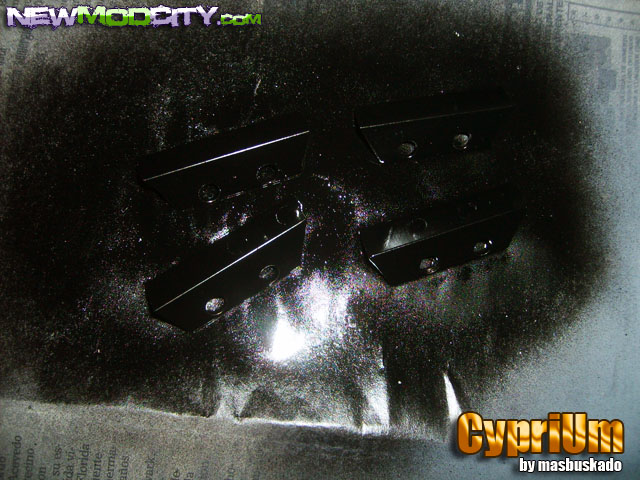

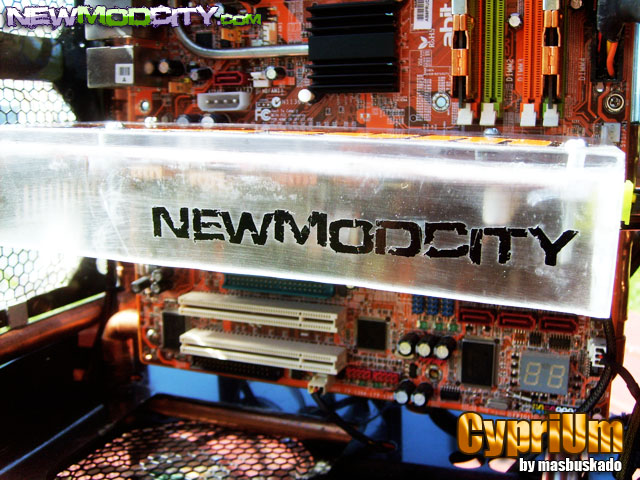

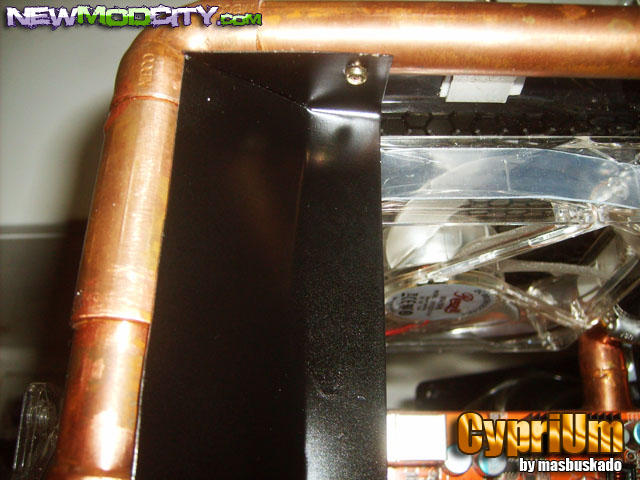

- Making the Video Card Bracket

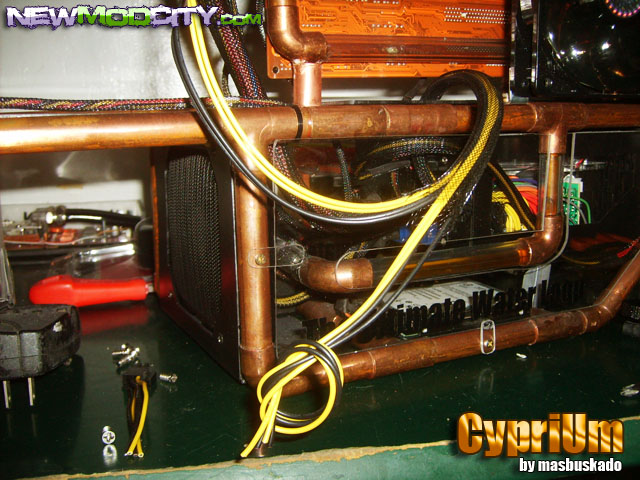

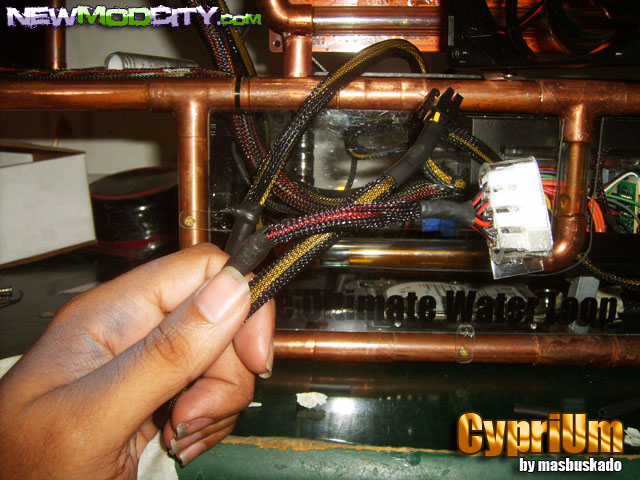

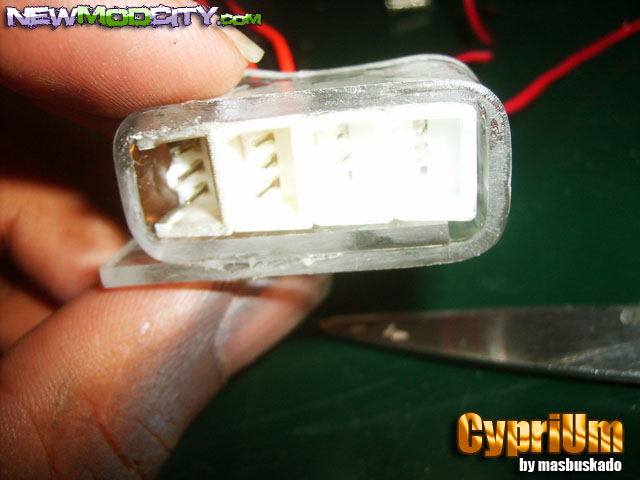

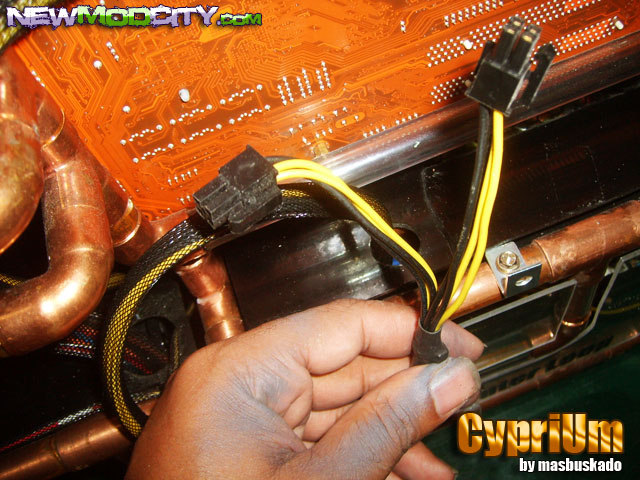

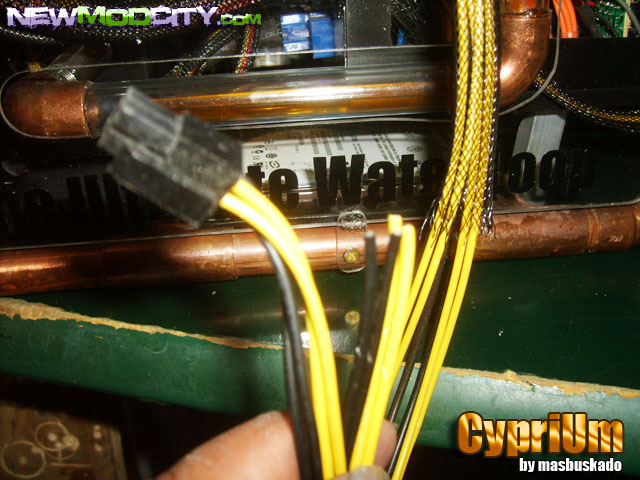

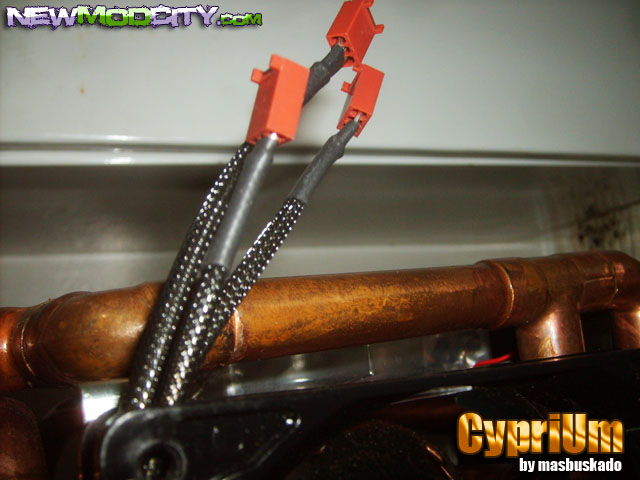

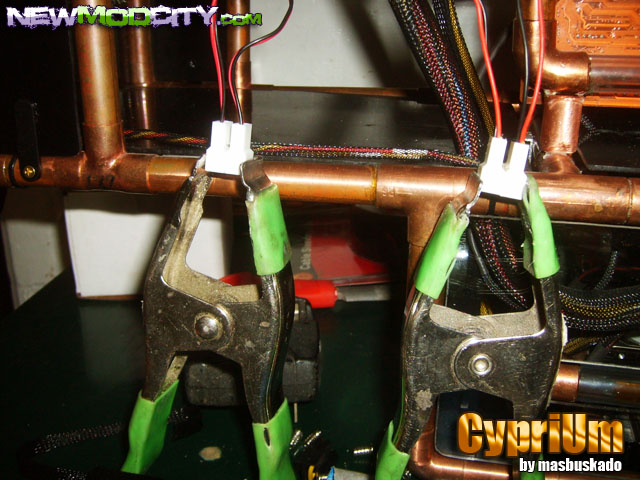

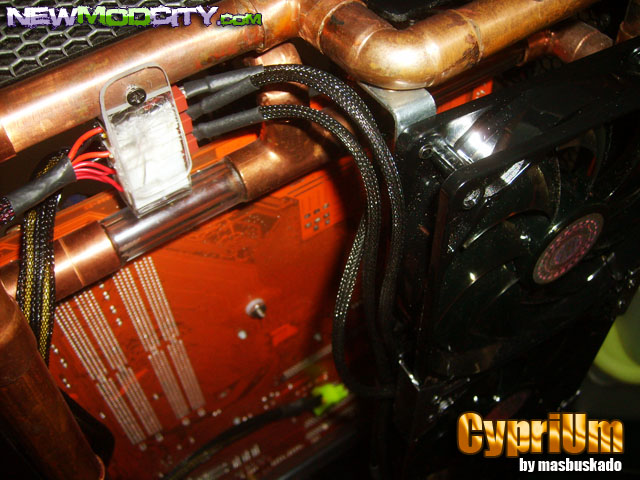

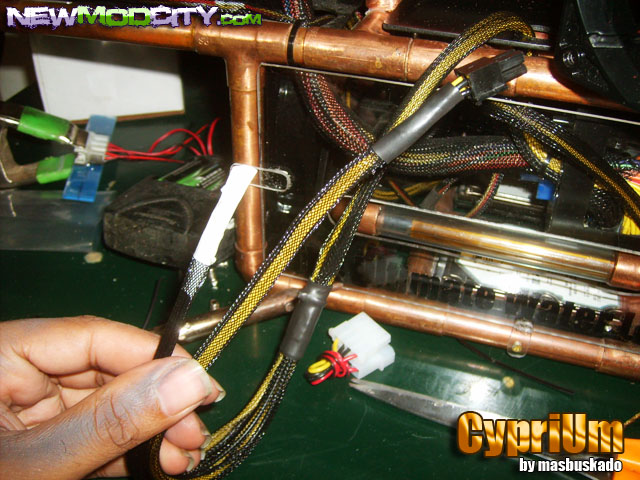

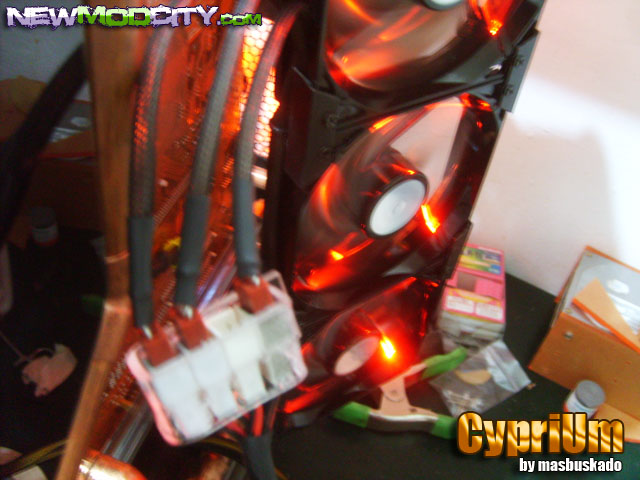

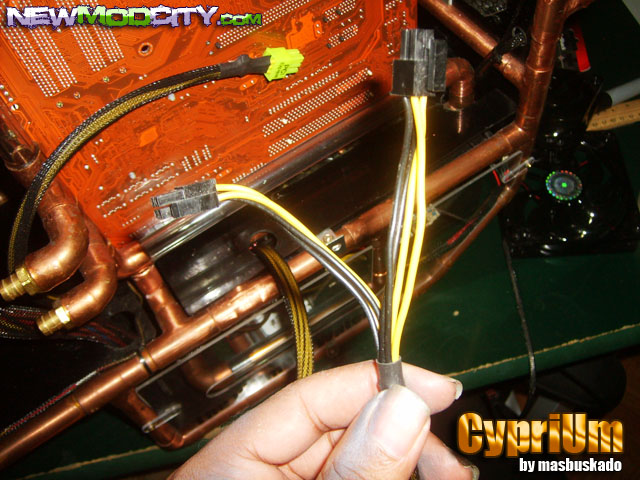

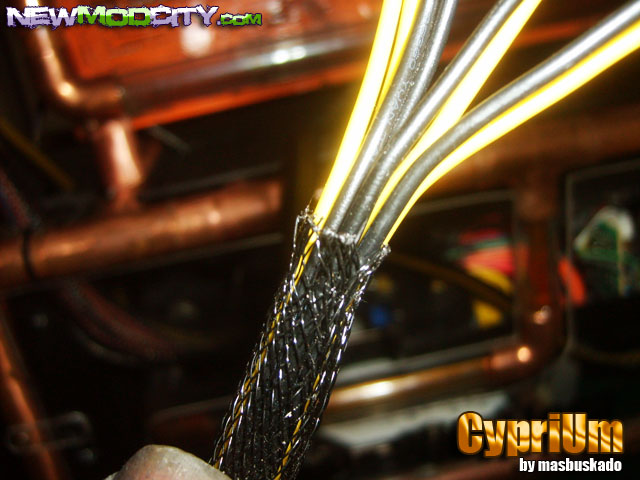

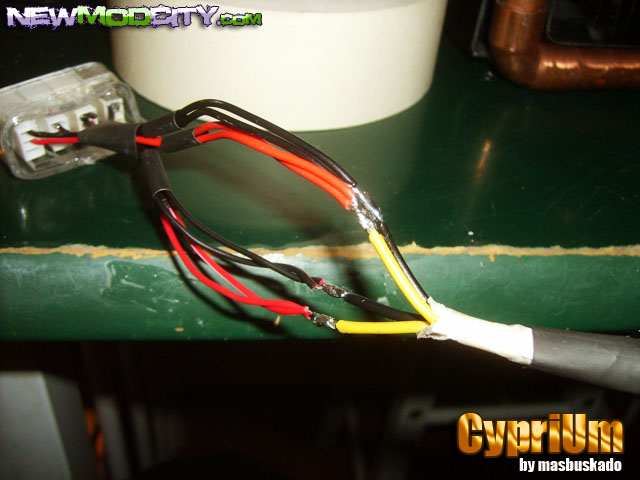

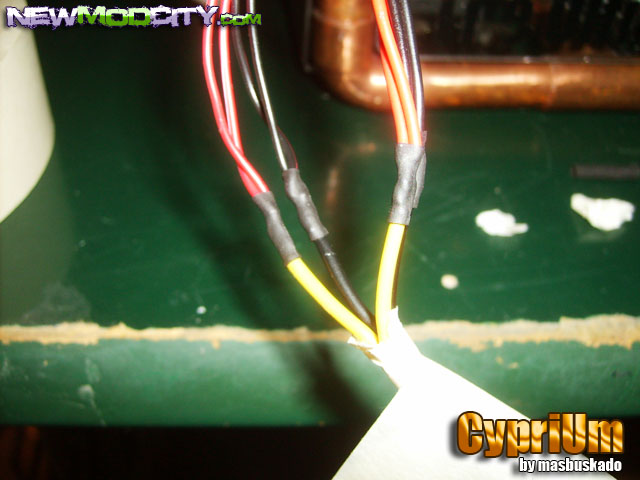

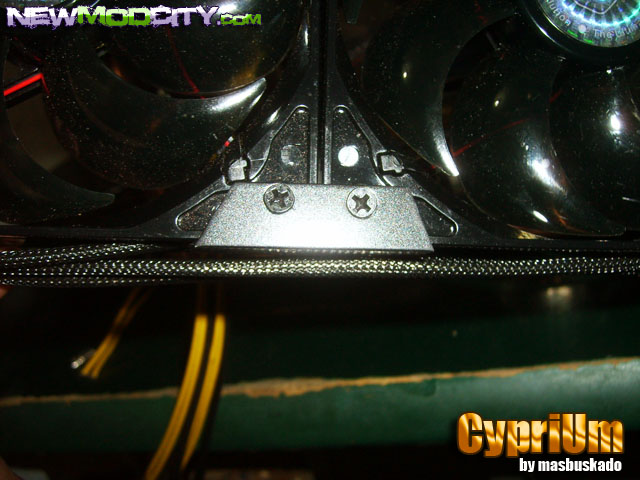

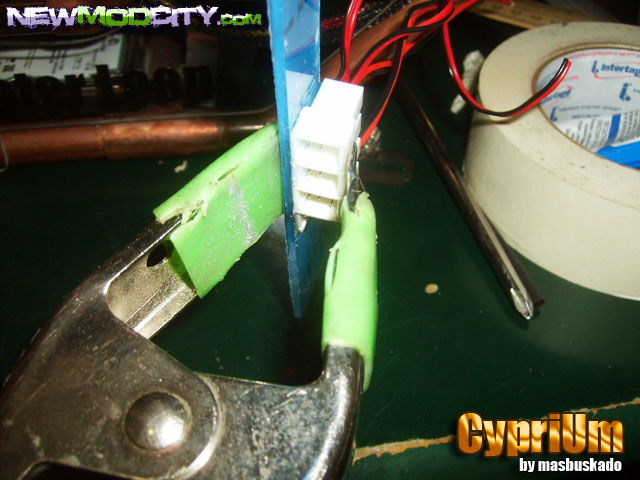

- Converting the P4 Connector to 4x 3 Pin Connectors

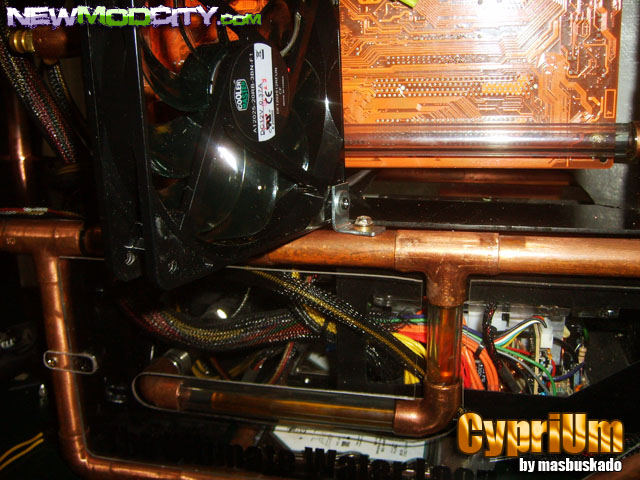

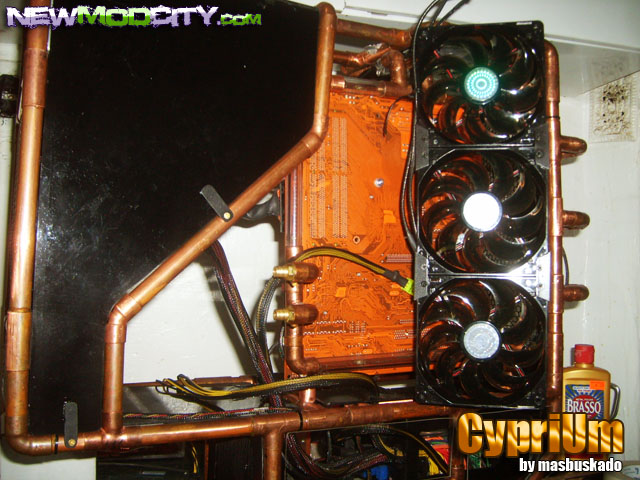

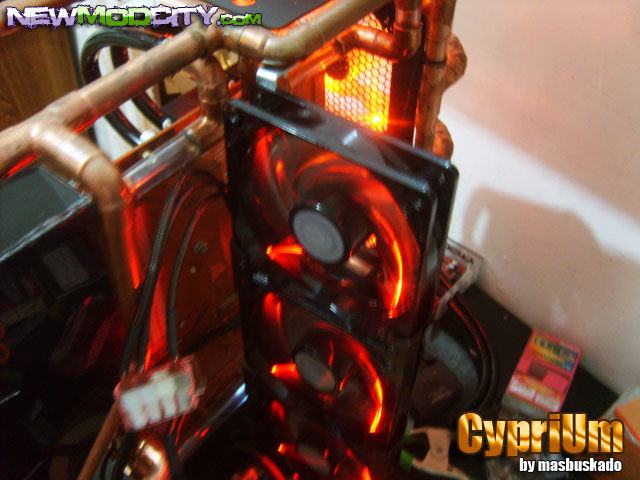

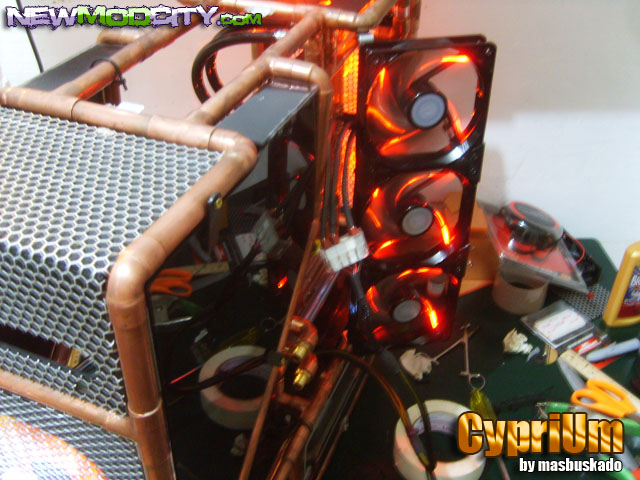

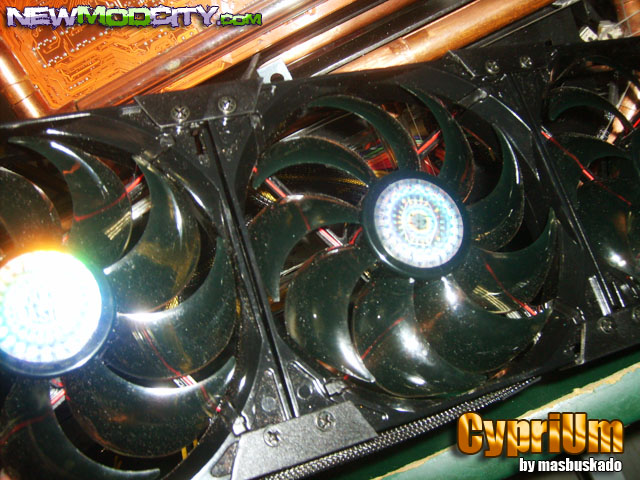

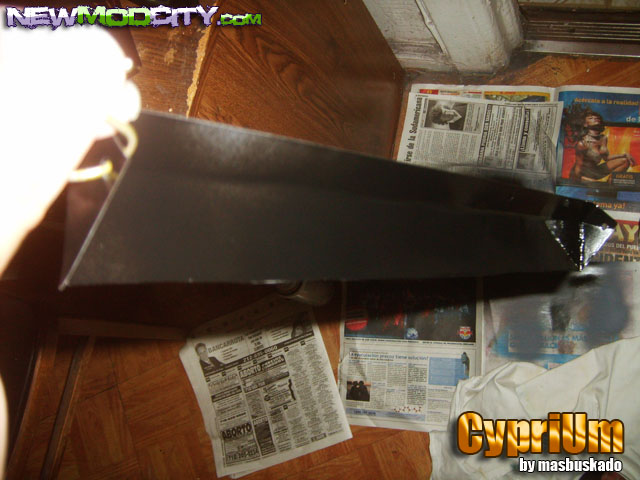

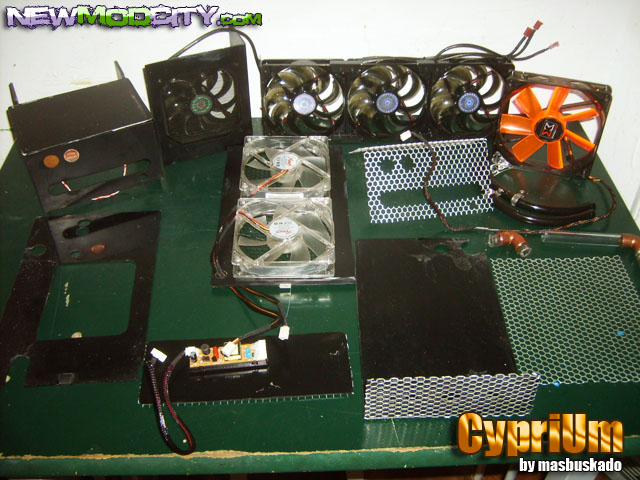

- Painting and Mounting the 3x 120mm Fan Loop Cooler









































- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Sep 20, 2009









































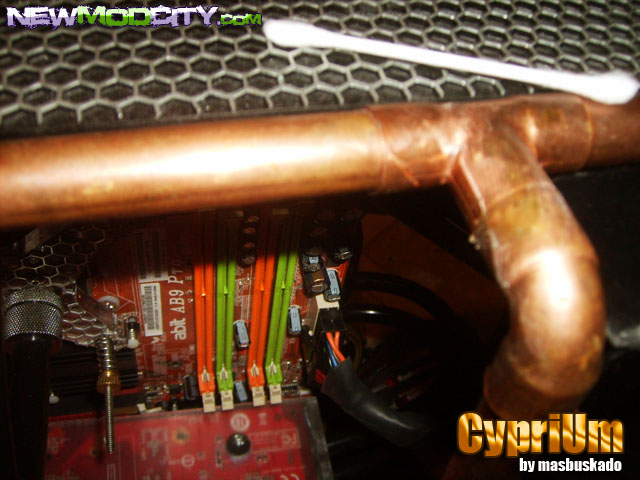

The only thing left to do is: Add the Cold Cathode Light, Add the Ram Cooler and Polish!!!

So stay tuned!!!


- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Sep 20, 2009

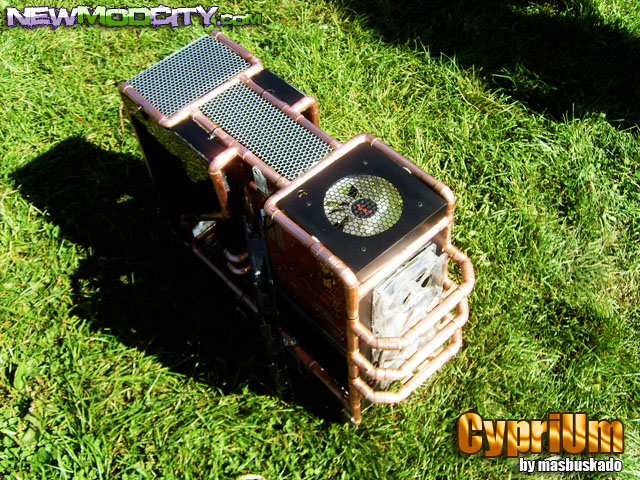

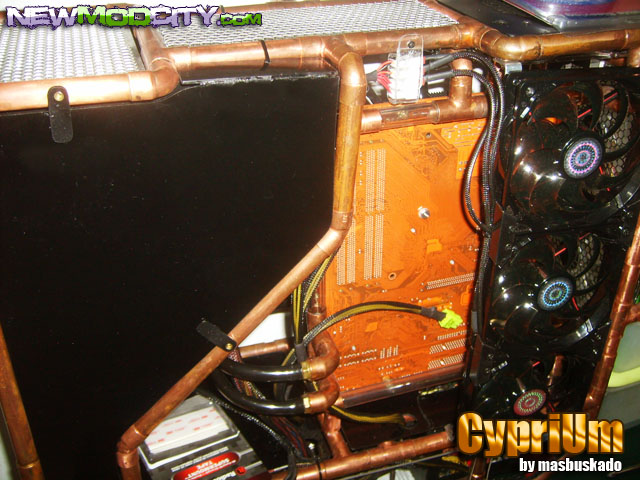

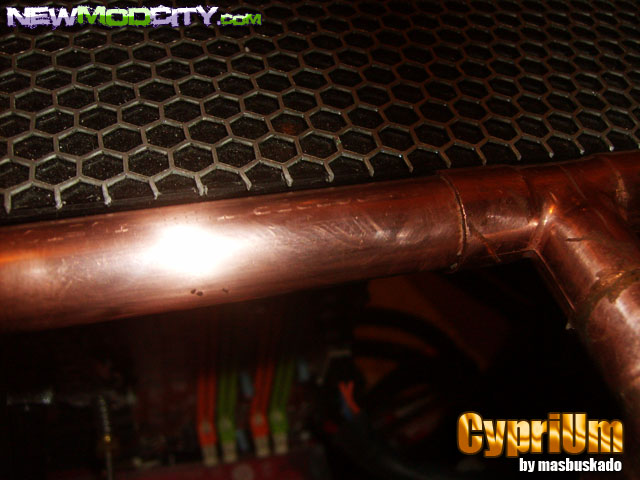

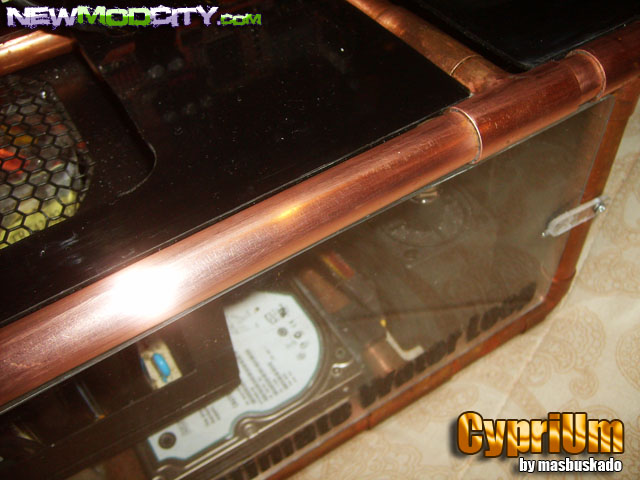

Shiny CypriUm!!!









- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Sep 20, 2009


So you already see the NMC Exclusive Pictures...!!!
This are the NMC non-exclusive pictures!!!























- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Oct 16, 2009


Well the PHASE 1 is now Completed
Phase 2 is in progress... The Ultimate Radiator








Final Video







Thank you all for watching this amazing project if you luv this build you will luv even more PHASE 2 and PHASE 3.

Masbuskado from New Mod City... Over...


- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Oct 16, 2009

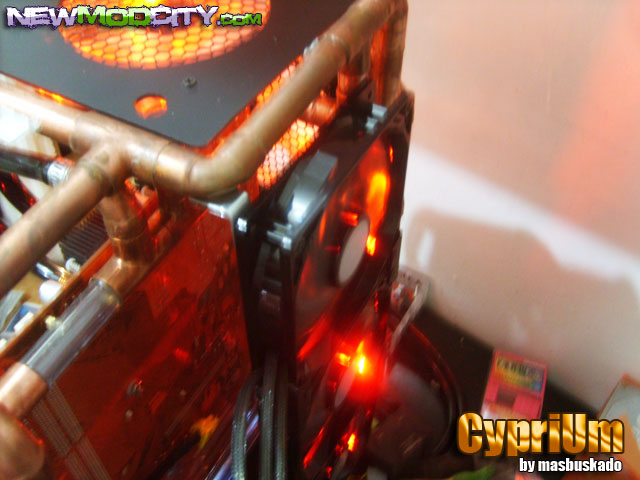

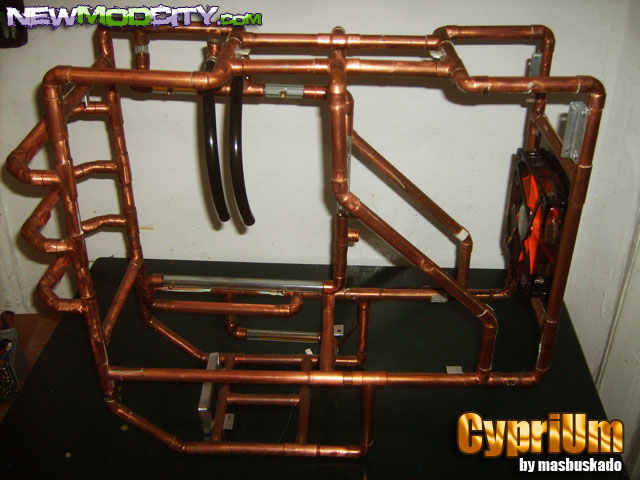

Well, I was very pleased with the final outcomes but I decided to do some change to CypriUm... so you can draw a line here because this is CypriUm 2.5...

CypriUm 1.0 from December 2008 - June 2009
CypriUm 2.0 from July 2009 - September 2009
____________________________________________________________________ The Line
CypriUm 2.5 from October 2009 - December 2009

The Upgrade will be lite and most of the picture will be posted on New Mod City!!!

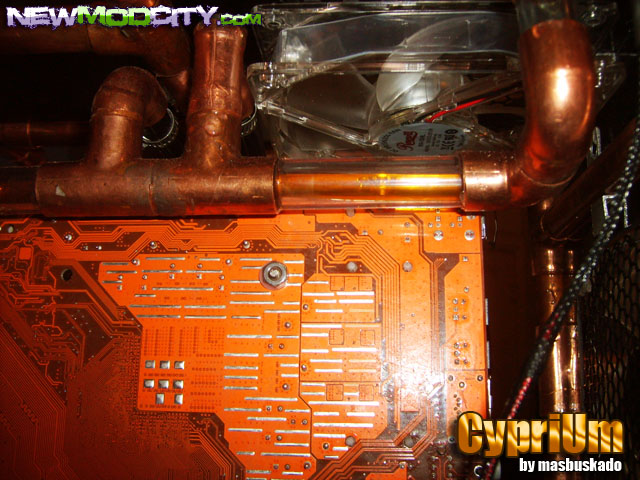

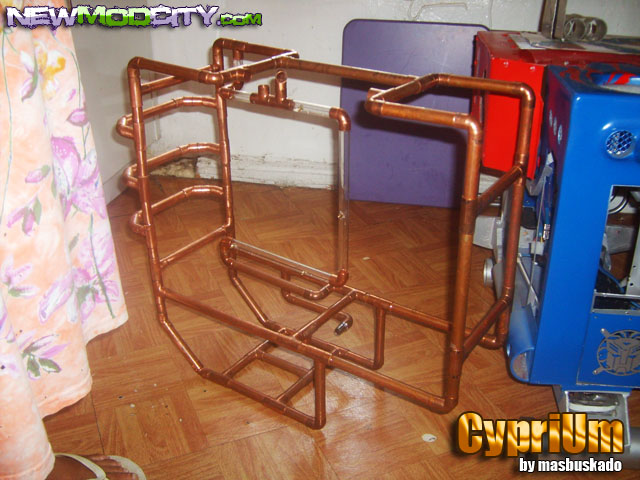

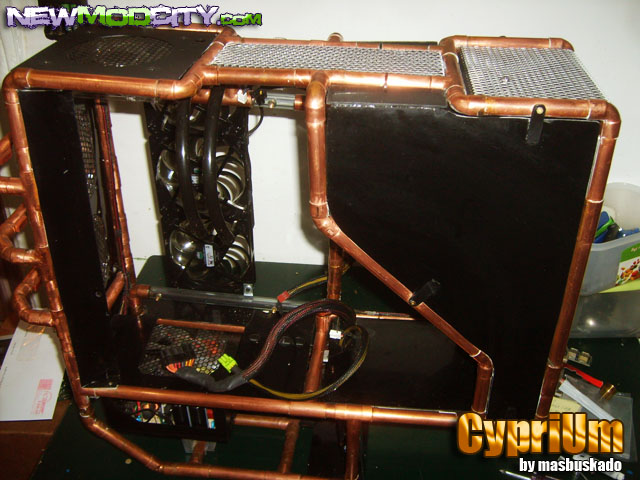

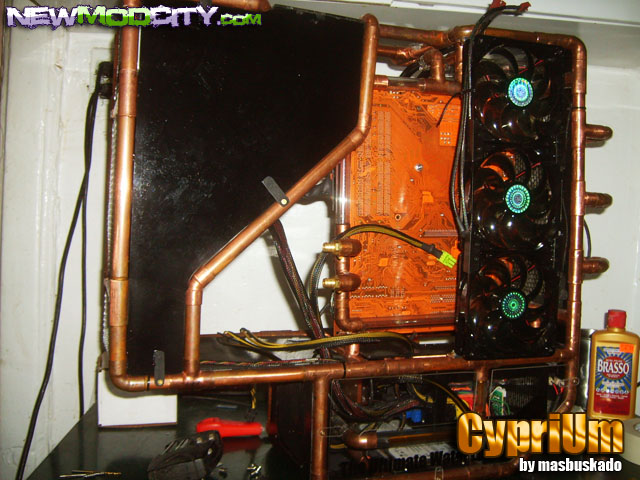

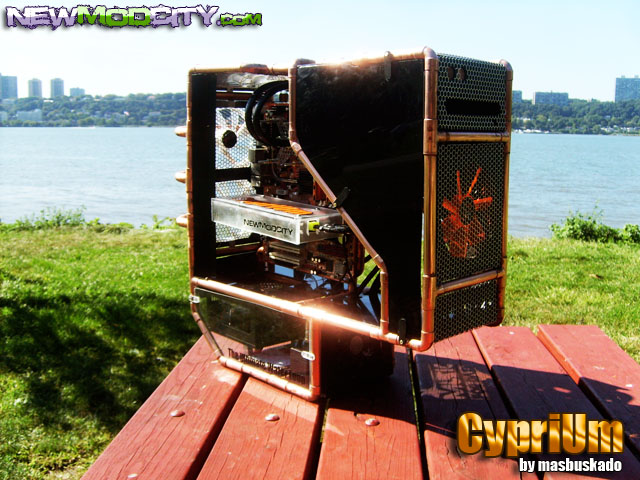

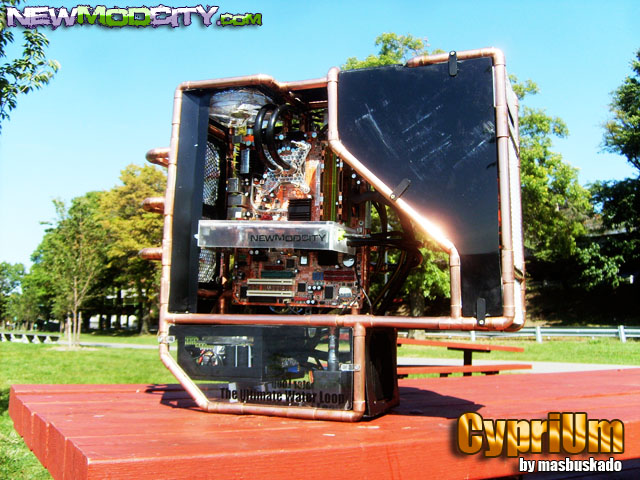

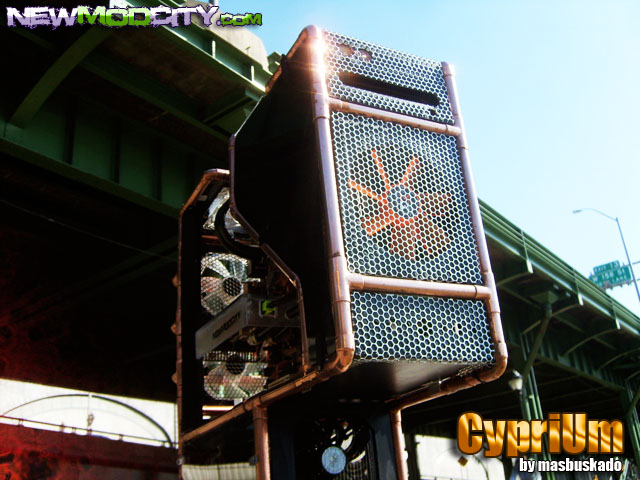

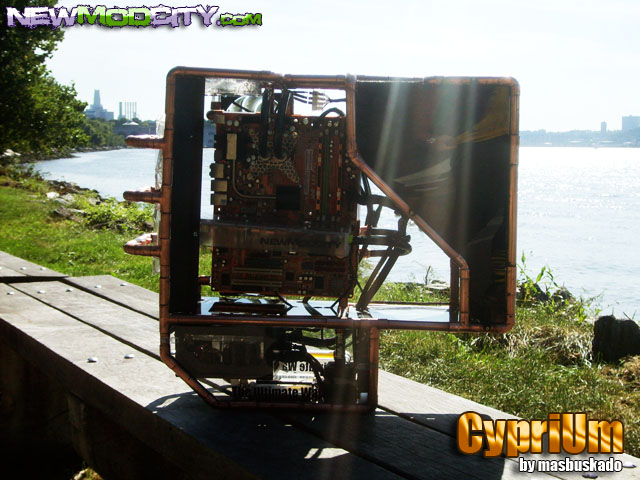

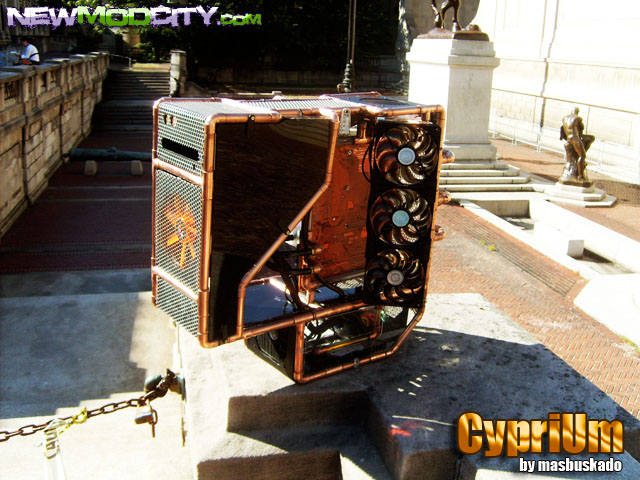

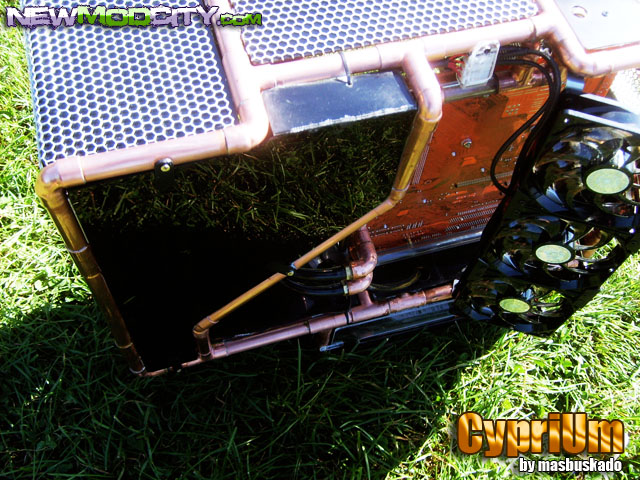

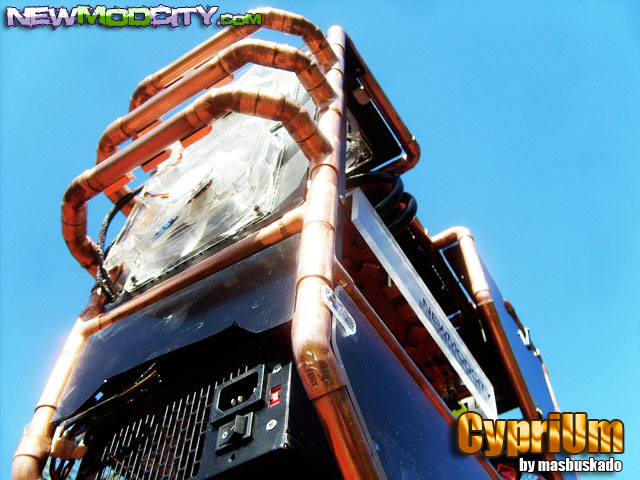

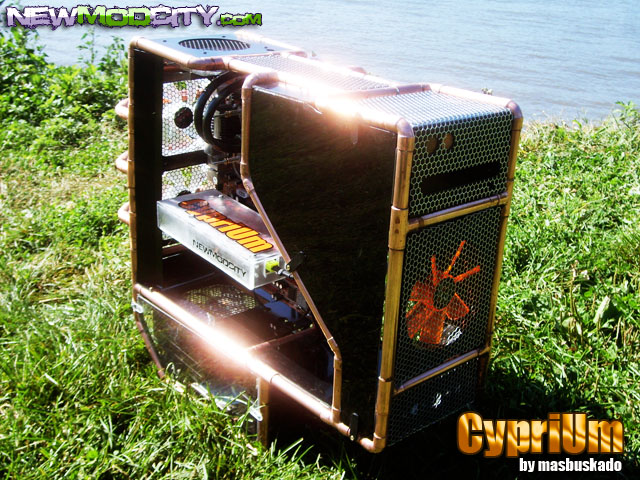

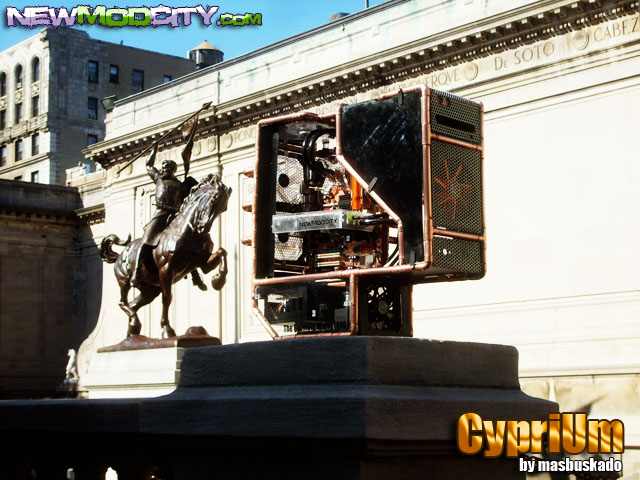

So here is CypriUm as right now!!!











Is like going backwards!!!


- Top - Profile - Private Message - Website - Quote - Reply

Marrok857
Combine soldier

Joined: Sep 17, 2009
Posts: 38
Post Subject: subject
Posted on: Oct 16, 2009


Alls I can say is wow! this is one heck of a work of art. Seriously it should be in a museum!


If it can be taken apart, it can be modified.
- Top - Profile - Private Message - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Oct 17, 2009


Marrok857Alls I can say is wow! this is one heck of a work of art. Seriously it should be in a museum!


Thank man!!!!
Nice to see somebody is alive in here!!!
Was like a ghost forum!!! jejeje


- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Oct 17, 2009

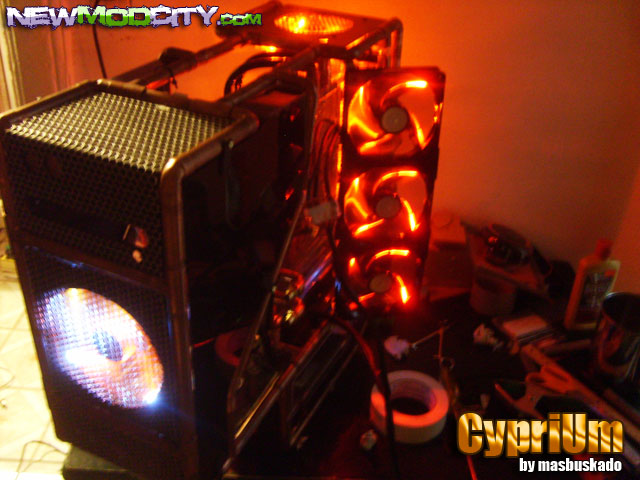

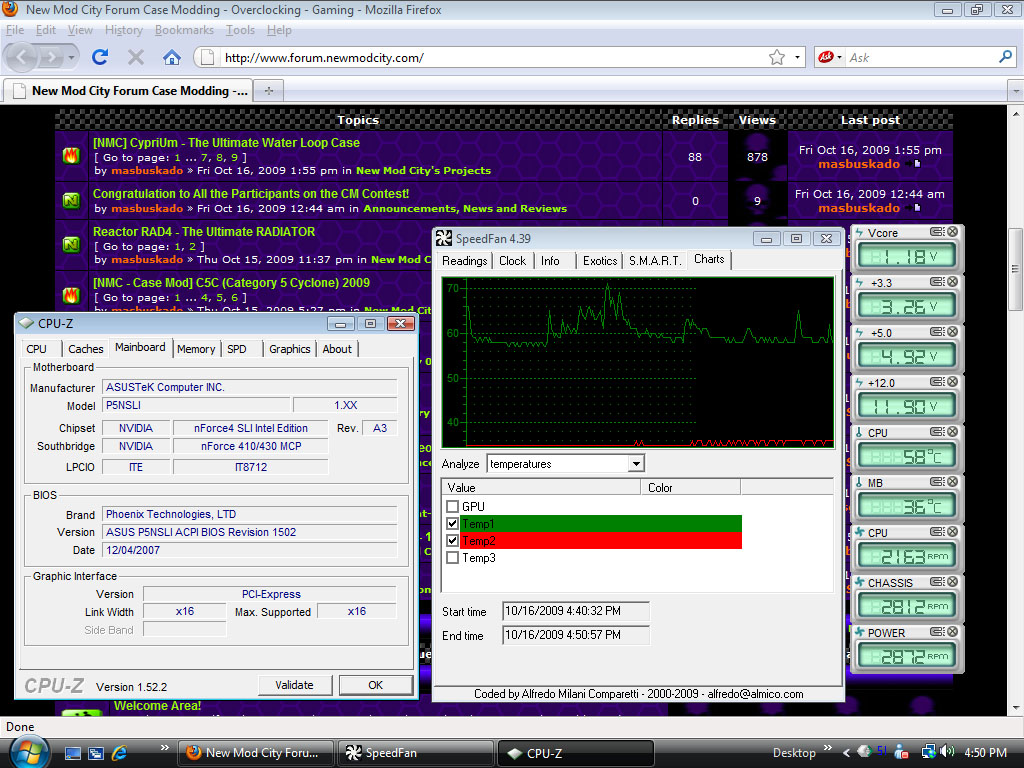

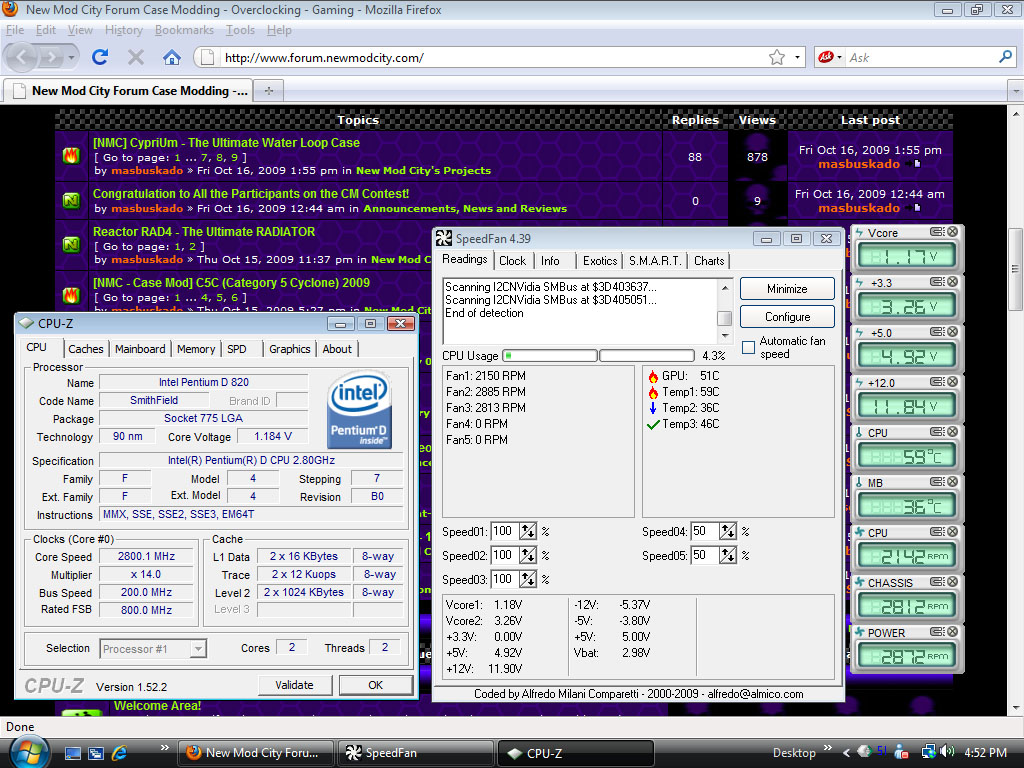

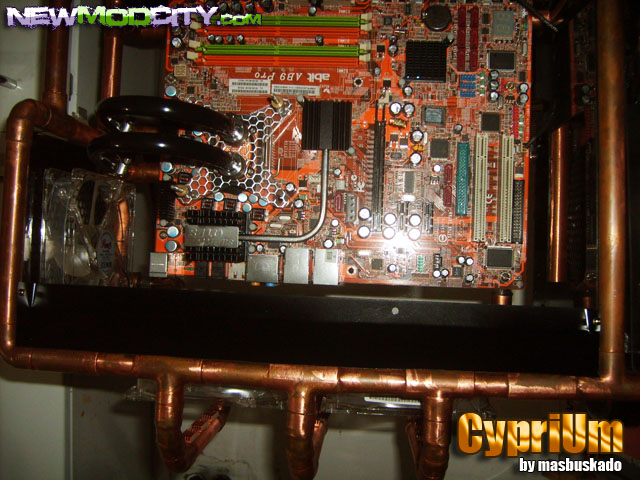

I just assemble a quick system with some part I have laying around this system is Air Cooler and has some extreme temps so I'll trought into the CypriUm frame to see what is gonna happen!!!





More Later!!!


- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Oct 17, 2009


Some here some update!

Ver 1.0


Ver 2.0


Ver 2.5

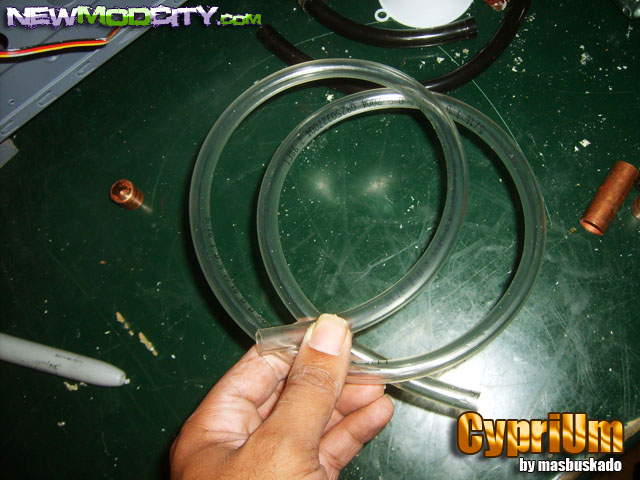

Some Clear Hose for the skepticals!


More to come!!!


- Top - Profile - Private Message - Website - Quote - Reply

Marrok857
Combine soldier

Joined: Sep 17, 2009
Posts: 38
Post Subject: subject
Posted on: Oct 17, 2009


I think the black hose goes well with the copper, has a kind of steampunk style to it.


If it can be taken apart, it can be modified.
- Top - Profile - Private Message - Quote - Reply

Gh0sTly
Dayton Metro PC Owner

Joined: Jul 24, 2007
Posts: 1235
Post Subject: subject
Posted on: Oct 19, 2009


that case is looking better and better. I would have expected the temps to be abit cooler for the CPU though. Is there a radiator/fan set in the loop?


FreshWater
Core2 Quad Extreme QX96500-ES @ 3Ghz, 4gb Patriot DDR2-1066Mhz RAM, 4gb Intel Turbo Memory, 3x 500GB WD Blue drives, Samsung DVD-RW, GTX 560ti-1gb Gfx card.
Future Mods: none for Freshwater. Next build will be all new.
- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Oct 22, 2009


Gh0sTlythat case is looking better and better. I would have expected the temps to be abit cooler for the CPU though. Is there a radiator/fan set in the loop?


Thanks man!!!
Where were you!?!?! Am glad you are back!!!
Those temps ware taken from some system I just put together I didn't tested on CypriUm yet!!!

Marrok857I think the black hose goes well with the copper, has a kind of steampunk style to it.


Me too... but the clear hose is just for those who don't believe in this project. I'll keep the original color scheme Copper, Black and Orange.


- Top - Profile - Private Message - Website - Quote - Reply

masbuskado
More Modder than Human

Joined: Nov 3, 2008
Posts: 157
Post Subject: subject
Posted on: Oct 22, 2009

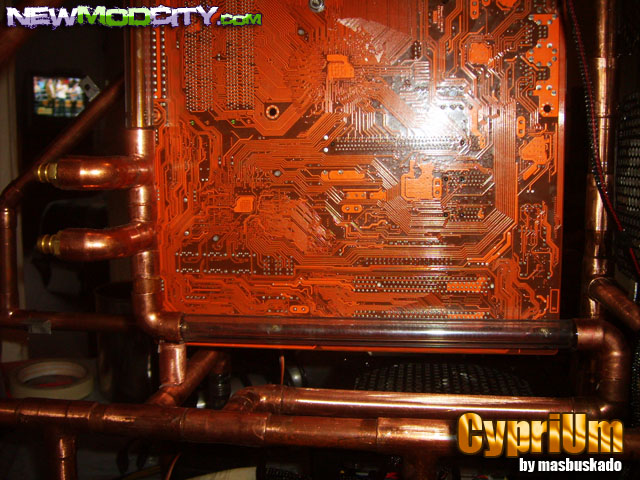

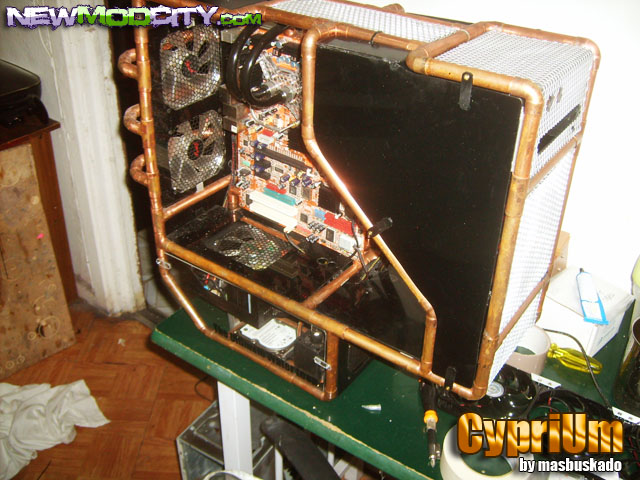

CypriUm 2.5 - Oct 20, 2009

Pay close attention to this update because this is the main key for the upgrade.

Ver 1.0 & 2.0








Ver 2.5

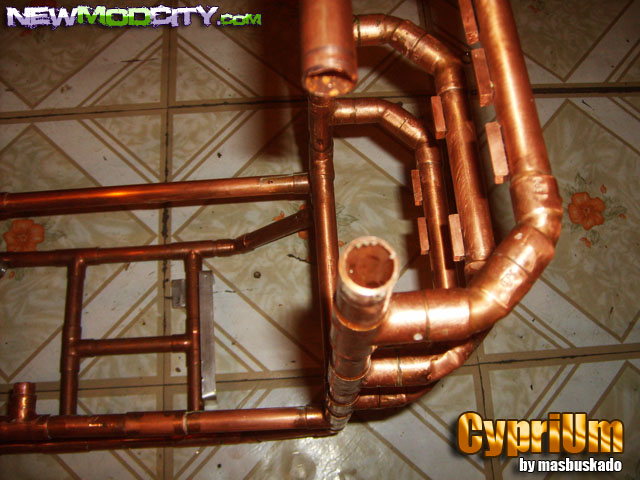

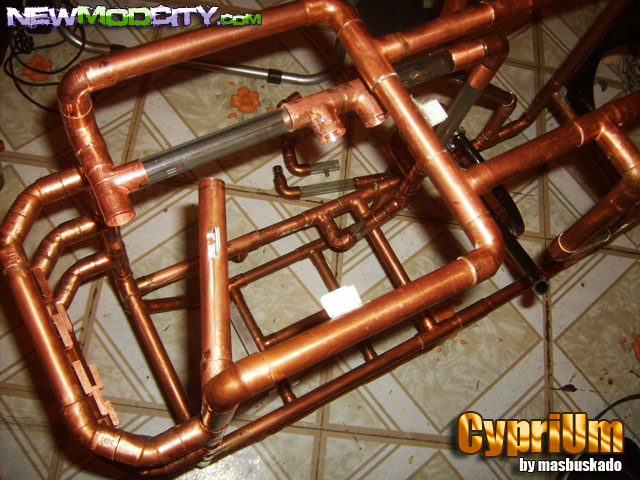

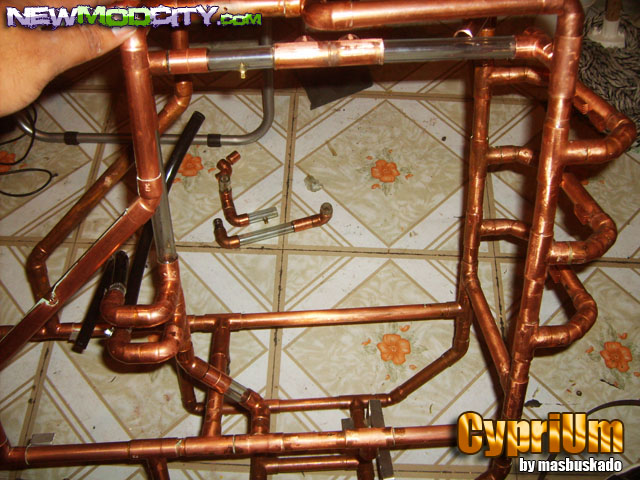

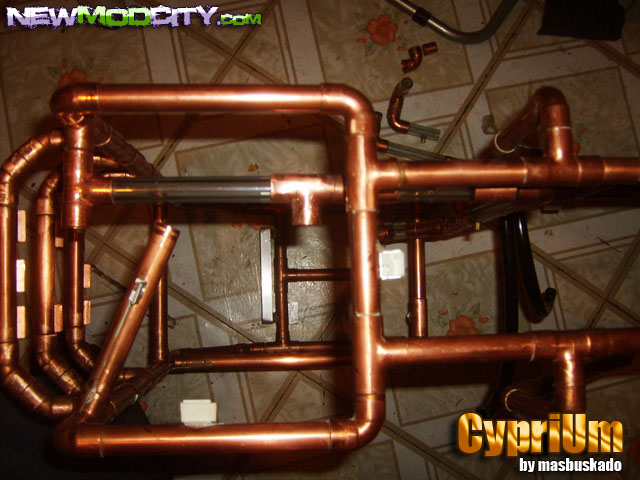

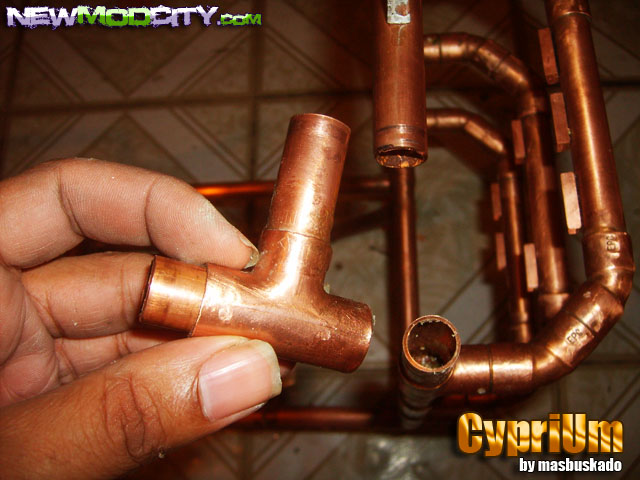

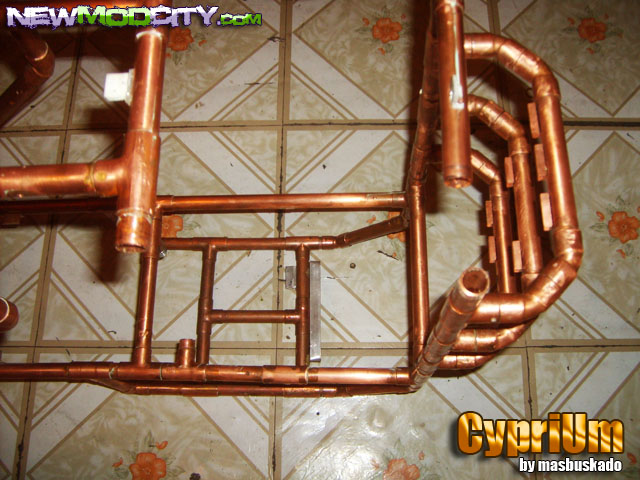

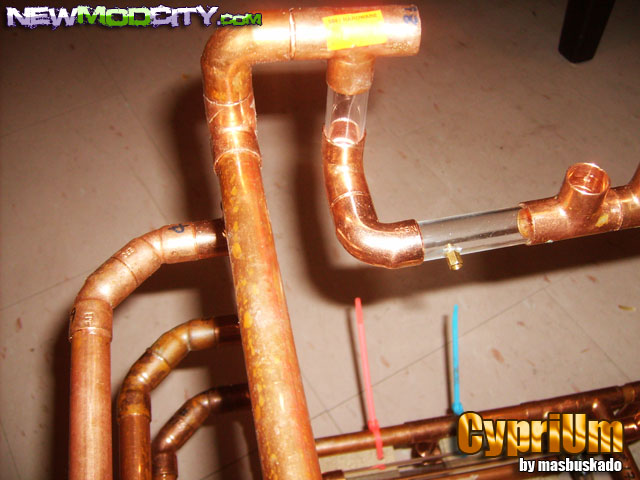

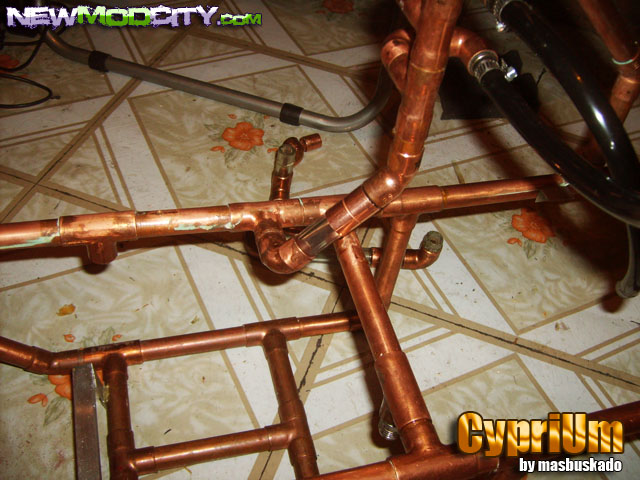

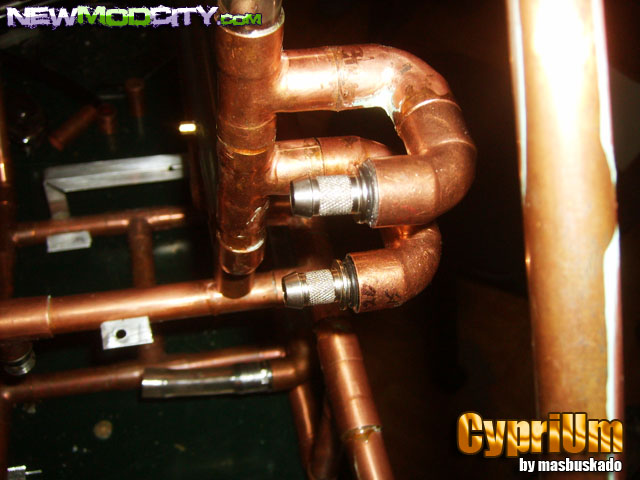

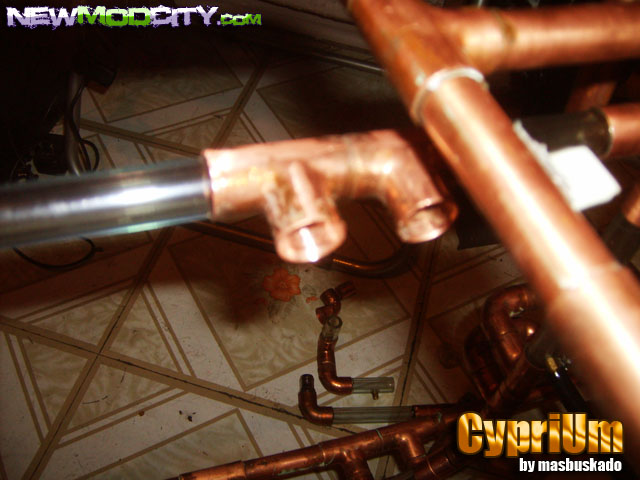

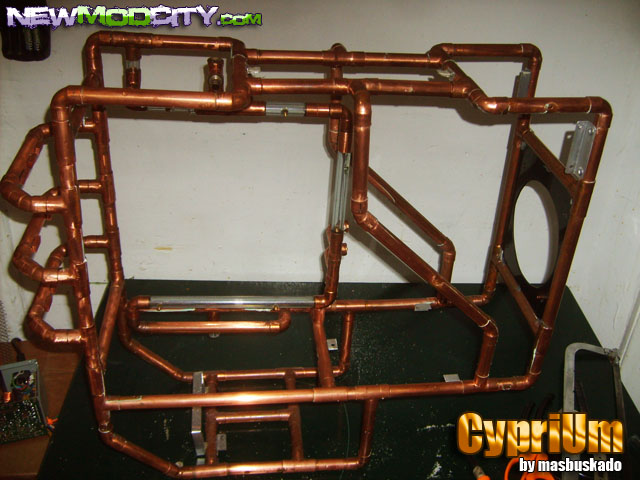

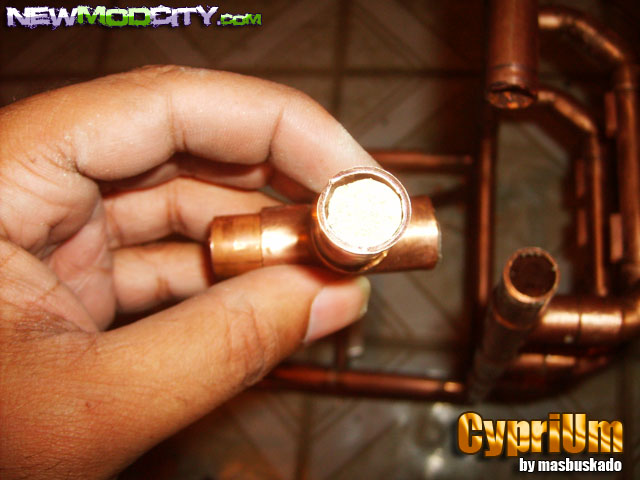

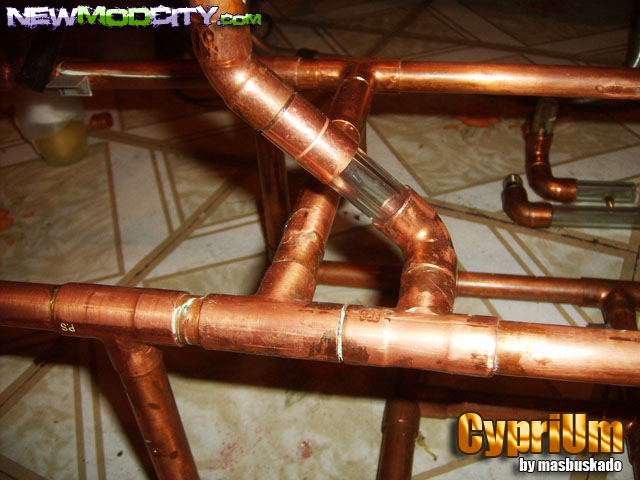

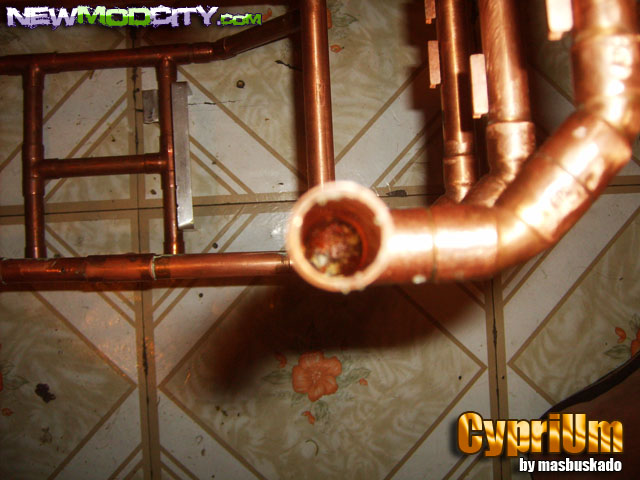

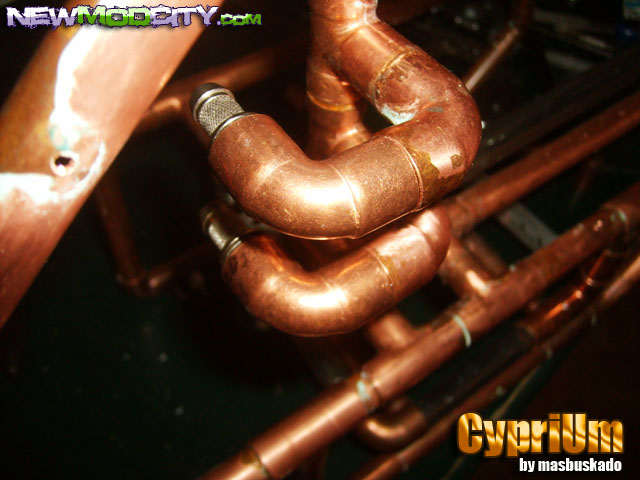

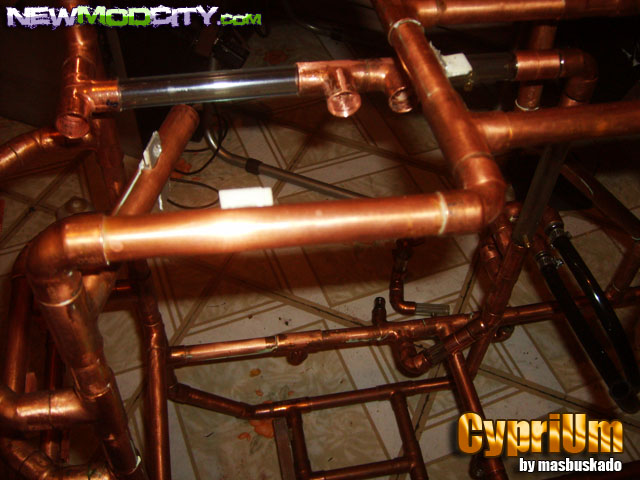

Here you can see one of the many "blockers" that I put into the copper pipe to redirect the path of the water, I just remove this blocker because I add 2 new one for the new water path.



















I hope that you understand what happen in this update!!!


- Top - Profile - Private Message - Website - Quote - Reply
